Mold Making

January 18, 2010 – 22:08

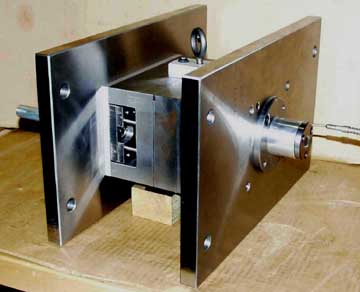

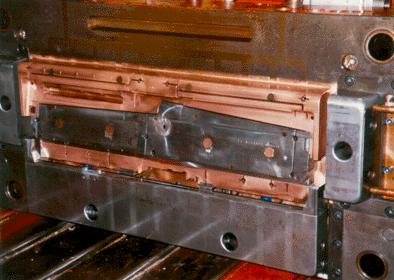

Shor Lok-Blok l Mold Making System: makes l molds that are the same dimensions as standard rubber molds. The process is simple and requires no skills. Why use l molds? l molds give a sharpness of detail that is absolutely impossible to achieve with rubber molds . In addition, if you are thinking of upgrading to plastic injection molding, only l molds can be used. l molds are most commonly used for detailed charms, class rings, and wherever razor sharp detail and consistent weight are desirable. Mold to the right is an example of a multi-piece l mold made over 50 years ago with an old fashioned cylindrical mold . Although used for many years, this mold is still as perfect as it was when it was first made.

Mold Design & Consultant

January 8, 2010 – 02:28

Our Mold Design & Engineering staff combines experience, imagination, and innovative industry practices to provide solutions to our customer’s satisfaction. Our Design and Engineering services are inclusive of, 1. Product Design 2. Rapid Prototyping 3. Mold Design 4. Reverse Engineering & Laser Digitizing 5. Assembly Systems Design 6. Packaging Design Our Engineering Facilities are, 1. CAD/CAM/CAE System Pro-Engineer AUTOCAD MoldFlow Analysis UG Solidworks Surfacer(Imagware for prototype sample) 2. Computer Hardware Quad-Core Intel® Xeon® Processor Desktop 3. Media CD/DVD ROM Internet Email FTP Memory Stick

Injection Moldmaking and Grinding Wheel Dressers

January 3, 2010 – 22:26

Tags:Mold Making Plastic Mold Plastic Mold Maker

Despite the fact that a great deal of precision surface grinding has been replaced by Wire EDM, there is still a demand for the skillful use of grinding wheel dressers. This is one of those toolmaking skills that requires considerable time and patience to master.

There are basically two types of grinding wheel dressers: under the wheel dressers and on the side dressers. In the past, most dressers were on the side, but with the introduction of a highly precise under the wheel dresser that is very easy to use, most shops use the same type.

There are also wheel dressers available that use optics and magnification to project the wheel form on a screen. These attachments are in use in many shops today and are highly accurate, though rather expensive.

Most injection mold making shops need a grinding wheel dresser that is accurate, fast, and low maintenance. If the dresser is so complicated to use that only a few individuals are capable, it is not practical. Also, because precision surface grinding is by nature a slow, tedious process, the need for speed is important as well.

Of all the radius/angle dressers that are commonly available, the simple to use under-the-wheel dresser is the most accurate and easy to use. A small magnifying glass is incorporated to aid in picking up the edge of the grinding wheel, which saves a lot of headaches.

The engraved graduations on the fixture are also highly accurate and, for most applications, are satisfactory. In the event that you need exact angles, it is simple to set and check on a magnetic sine plate by indicating with a dial indicator.

Another very useful item for radius and angle dressing on a precision surface grinder is the boron carbide dressing stick. One of the commercial names for this is Norbide, and it is readily available from a supplier.

Very often it is necessary to redress the corner of a grinding wheel to maintain a sharp, 90 degree corner. Instead of disrupting the grinding operation and mounting a wheel dresser, it is possible to simply use the boron carbide stick manually. With some practice this becomes routine and is a real time-saver.

Overall, nearly any radius or angle can be dressed on a typical grinding wheel with a minimum of quality tooling. The basic requirements would be an under-the-wheel radius dresser, precision angle plate, set of diamond nibs, gage blocks, boron carbide stick, granite surface plate, surface gage and dial indicator.

Challenges in Blow Mold Design(2)

December 31, 2009 – 00:04

Tags:Plastic blowing mold making Industrial mold making Thread mold making

Blow Mold Design and Build Requirements Al Vanover, V.P. of Marketing at Mid-America Machining (Brooklyn, MI)!aa producer of blow molds, trim tooling andother related tooling!astate that depending upon the technology and machine platform, the mold has certaindynamics, which means there must be a minimum obligation on the machinery manufacturer to accommodate.

A mold of a certain size needs to hve a sufficient platen size and clamp force to allow the mold to functionproperly, Vanover elaborates. With w machinery technology and different means of blowing a container, thereare always explorations on how to blow the container faster, exhaust the air and cool the flash, which is themoldmakers!? challenge today.

With higher cavitation machiery and sometimes faster cycletime requirements, we cannot lose sight of those key attributes that make !(R)a good mold a great machine,!?!±continues. !°In the competitive blow moldmaking environmet, we believe value-added is the best ingredient tosuccess. Whether it is the cooling design, the cavity layout, the mold materials or the proprietary technology thatexists, the design process continues to evolve with almost everyproject.Wilmington Machinerys high-sped, small bottle (SB) rotaryblow molding wheel system uses a miniaturized version of thecompany!?s mechanical clampng systems!aa technologyoriginally perfected in their larger wheel machines!acombinedwith a proven technique for accurately positioning the clampsand molds relative to each other.

Newman points out that this new technology was developedbecause traditional methods were not yielding productiveresults. !°Some blow moldingmachinery manufacturers havebegun promoting tandem blow!athe process of blow molding twobottles per parison that have been configured in a neck-to-neckor base-to-base arrangement in the mold,!± Newman states.

Their rationale is not necessaril that this technique producesbetter bottles, but that it is the only way to increase output without incurring the additional cost of multiplemachines.

However, producing two identical bottles in a tandem blo process is a problematic challenge, especially with freefalling parisons typically used by shuttle and reciprocating blow molding machines,! Newman continues. Theparison shape is never identical from the top to bottom in the mold; and achieving an identical material distributionin the top and bottom containers can be next to impossible. Additional variation is added by trying to balance andset up four, six, eight or more parisons to be identical. Even with wheel machines the physical variations in bottlesblown in a tandem process can never be totally eliminated.!The new machines system uses a singleparison and individual cavities, instead of tandem, in order to produce thehighest quality bottles with the least variation in material distribution bottle-to-bottle, and with the smallest weightvariation.

Challenges in Blow Mold Design(1)

December 30, 2009 – 03:12

Tags:Plastic Mold Maker Die Casting Mold Maker Mold Design

It is safe to say that the today!?s world is a fast-paced one!ait is not only in the moldmaking shop that people want to get things done quicker than ever. With a majority of the population constantly onthe go, the market for single-serving containers (plastic bottles) ofboth beverages and foods is exploding. While designing and buildingblow molds is challenging, it is a niche worth exploring.

On the molder end, production requirements for a single typepackage can reach 100, 200, or even 400 million containers peryear, so molders need the best, least complex, and the mosteconomical machinery that can handle these extreme productionrates!aalong with blow molds tha can stand the test of time andtake a beating.

According to Jeff Newman, VP of sales and marketing at Wilmington,NC-based WilmingtonMachinery!aa provider of machinery andprocesses to produce high output packaging and structural plasticparts!athis trend is a global one that is driven by many factors,including the following: school milk programs conversion from paperto plastic, new package developments targeted at the convenienceand health food markets, and changing economical factors andconsumer habits in Latin American and Asian countries.

This translates into some lucrative business on the blow moldingend. Some blow molding equipment manufacturers have respondedwith new machines designed to handle this trend, which results indesign challenges for blow moldmakers.

The Machinery has built a rotary blow molding wheel system that blow molds small bottles in a single cavitymold and uses a proprietary method of guiding the containers from under the blow molder through the trimmer atextremely high speeds with maximum efficiency. This article will detail blow mold design/build requirements as wellas challenges and how to overcome them through the use of this new machine.

Metal Injection Molding: the Choice for Small, Complex Parts (2)

December 29, 2009 – 01:35

Tags:Mold Making Plastic Injection Molding Plastic Mold Maker

Kinetics’ staff of metallurgists and design engineers has handled many special materials and design requirements. Besides MIM-4650, they currently produce parts in 316, 316L, and 17-4 PH stainless steels. They are able to build tooling and deliver initial customer samples in as little as six weeks from the receipt of a purchase order.

For parts that require secondary operations, Kinetics has a variety of in-house capabilities that include deburring, tapping, reaming, grinding, and sizing. Other operations such as heat treating, precision machining and surface treatments, including plating, are available locally with established vendors.

The company uses a wide range of inspection equipment from hand held gauges and application-specific functional gauging to non-contact measuring equipment such as a state-of-the-art vision system. Their computer controlled vision system is capable of simultaneously inspecting multiple characteristics on 24 samples. Besides dimensional inspection, the company routinely measures carbon, density, and material hardness, along with analyzing metallurgical samples.

New Vertical Injection Molding Machine Strengthens ExxonMobil Chemical Technical Support for Santoprene™ TPEs; New Press is a Testament to Ongoing Commitment to Meeting Customer Needs Technical support at ExxonMobil Chemical’s Santoprene(TM) specialty products technical center in Akron, Ohio, has been strengthened with the addition of a new vertical injection molding machine. It will be used to assist customers with insert and overmolding projects using Santoprene thermoplastic elastomers (TPEs). The new machine, with 130 tons clamping force and rotary table, was selected because it is similar to those most commonly used in industry.

Gary Lawrence, engineering specialist, ExxonMobil Chemical, said: “Our customers are becoming increasingly involved in insert molding and two-shot overmolding projects and in the plastics industry this type of work is generally undertaken on a vertical rather than a horizontal machine. With new equipment that replicates the industry norm, we have strengthened our technical support to customers worldwide. Helping Santoprene TPE users manufacture a better end-product more efficiently is an approach that has kept us at the forefront of the industry for 25 years.”

The vertical injection molding machine has a fast cycle time, accurate rotary table and can take a 7.5 ounce shot size.

Through its technical centers in Akron, Brussels, Singapore, and Tokyo that can replicate industry molding production plants, ExxonMobil Chemical provides customers who buy Santoprene products with specialized assistance in all aspects of mold design, processing, testing and material selection. Each center is also linked to the group’s intranet, so real-time analysis and reviews can take place at the customer’s convenience.

Technical center support areas include elastomer development, product analysis development and prototyping, elastomer grade selection, mold and part design, troubleshooting, injection molding including two-shot process and overmolding, computer-aided design and engineering services, material comparisons and selection, finite element analysis (FEA), mold-flow analysis along with technical laboratory testing of physical properties and evaluation of materials for specific applications.

About Santoprene(TM) specialty products

ExxonMobil Chemical’s Santoprene specialty products are the global leader in engineered TPEs, materials with the performance of rubber and the processing ease of plastic. ExxonMobil Chemical is a global leader in technology, product quality and customer services, with petrochemical manufacturing and/or marketing operations in more than 150 countries around the world.

Metal Injection Molding: the Choice for Small, Complex Parts (1)

December 27, 2009 – 20:05

If your company uses complex precision metal components, metal injection molding (MIM) can offer significant cost savings and eliminate design restrictions inherent in other metalworking technologies.

Metal injection molding is a young technology, having only been practiced commercially since the mid 1980s. North American industry sales are reported to be near $60 million, and growing at over 30 percent per year. The process is essentially a marriage of the thermoplastic injection molding and conventional powder metallurgy processes. It offers the same level of design freedom for highly configured metal components as is available for plastic parts in the plastic injection molding process.

The technology produces very high-density parts with mechanical properties superior to powder metallurgy, and comparable to wrought materials. It is successfully serving a variety of industries such as medical and dental tools, business machines, power hand tools, industrial equipment, electronics, medical and dental tools, automotive, and sporting equipment.

Typical MIM Process

The MIM process starts by combining fine metal powders with a polymer binder to create a feedstock suitable for injection molding. After the feedstock is compounded, the material is injected into standard plastic injection molds that have been designed about 20 percent larger than the desired final product. An oversized mold is required due to the presence of the binder, which is subsequently vaporized from the molded part in a furnace. This stage of the process is commonly referred to as debinding.

The debound part is sintered at temperatures above 2200 degrees F. This releases the tremendous surface energy stored in the fine-mesh metal powder and fuses the metal particles together, shrinking the part to the final shape and size in a precisely controlled manner. The as-sintered part retains all of its molded features.

Many of the same design principles used for designing plastic parts apply to designing MIM parts. They will exhibit features characteristic to the molding process such as parting lines, gate, and ejector pin marks.

Metal injection molding is a general-purpose technology that applies to a wide range of applications. Its ability to reduce component cost is centered on its ability to produce small, complicated, three-dimensional shapes. Some of the best examples of MIM parts are those that have been designed specifically for the MIM process.

The following part requirements represent applications that can benefit from MIM:

· Tolerances of +/- 0.003 inch per inch or better

· Parts that would normally require four or more machine tool set-ups or cutter tool paths to produce

· Wall thickness to 0.5 inch

· Weights up to 100 grams

· Lengths up to six inches

· Annual quantities of 20,000 pieces and up

· Material density at 97 percent of theoretical

· Material strength near that of wrought materials

· Surface finish of 16 to 32 RMS

As shown in the accompanying graph, MIM saves money for highly complex parts, i.e. parts with at least four machined features. If a component is produced by stamping or die-casting and it meets design and performance requirements, it is probably being produced by the most economical approach for that component. MIM does not compete with screw machined components unless they require two or more secondary operations.

If investment casting are used in the as-cast condition or conventional powder metallurgy parts used without secondary operations, then those processes should be retained. However, if the investment casting or powder metallurgy parts require secondary machining operations, then MIM may offer cost savings. Compared to investment casting, MIM is able to provide a better surface finish and finer feature details.

New Developments

Kinetics customers are indicating that MIM routinely saves them 20 to 70 percent on component costs compared to other manufacturing processes. That’s partly because of the inherent advantages of MIM and partly because Kinetics has advanced MIM technology beyond its standard capabilities.

Kinetics emphasizes a commitment to continued development of process technology, new materials, and quality. The focus is to reduce variability in all aspects of the process, from the selection and compounding of materials to molding and sintering of components. This focus has allowed dimensional capabilities to +/- 0.15 percent in many cases.

Early R&D activities enabled the company to develop a unique debinding and sintering process that controls and maintains carbon levels. This enables the production of MIM-4650 per MPIF Standard 35. This material can be heat treated with a variety of processes, including quench and temper, austemper, and induction hardening, resulting in ultimate tensile strength to 240 ksi and apparent hardness to HRC 50.

Also, Kinetics has developed a continuous feedstock compounding process capable of generating 300 pounds of feedstock per hour. Intensive mixing ensures a consistent dispersion of metal powder particles and binder throughout the feedstock. Process controls monitor rheological properties for molding consistency, feedstock density, and other key characteristics for maintaining precise shrinkage control during the debinding and sintering process.

Designed experiments such as full factorials and fractional factorials have already identified many of the key variables and interactions that are critical to controlling process variation. The experimental research method continues to be used to identify process improvement opportunities.

There are more than 80 parameters including time, temperature, pressure, and velocity specified for each new application. Once established, all molding parameters are electronically recorded by the microprocessor to provide an exact duplication of process conditions for each subsequent customer order. Control charts are established for each product to ensure that part weights are maintained and the process is in control.

A one cubic foot laboratory vacuum furnace is used in the development of all materials, processes, and product applications. The furnace was specifically designed and built at Kinetics to replicate the capabilities of the large, ten cubic foot production furnaces. But the lab furnace includes additional instrumentation to monitor changes in process events.

The availability of the lab furnace eliminates scheduling conflicts with production orders. It also results in shorter development times, with only the resolution of scale-up issues remaining.

Practical Experience

Kinetics is the MIM industry’s fourth largest commercial supplier in North America. The company has assisted customers with component designs that would have otherwise been impossible to produce or economically impractical to produce by other metalworking technologies.

Equipment currently in place at Kinetics provides enough capacity to more than double existing production. The company has five closed-loop, microprocessor controlled, injection molding machines ranging from 55 to 150 tons to meet their production requirements.

They have ten continuous production vacuum furnaces that were specifically designed for debinding and sintering in one operation. This eliminates the oxidation of parts associated with other processes, and the need to handle fragile parts. It also safely removes binders in a precisely controlled manner without hazardous waste or solvents. All furnaces are controlled by microprocessors to ensure part integrity, dimensional control, and process repeatability.

Kistler upgrades injection monitoring system

December 20, 2009 – 22:06

The main feature of the software is real-time processing capability for cascade control of the plastic injection moulding phase.
The opening and closing of the needles can be activated on a differential or absolute basis by either pressure or time.
Used with a PC or dedicated 12.1in colour touch-screen monitor in conjunction with the integrated multi-channel cabling for Kistler cavity pressure and temperature sensors, the Como Injection moulding system provides a complete moulding process monitoring and control system.
In combination with the Como MIS (management information system) and integral Curve Viewer module, the latest version offers sensor, connection system, process control and monitoring through to process data storage, documentation and analysis.
As a complete system for zero-defect production, Kistler said Como Injection ensures 100 per cent quality during injection moulding.

Medical Plastic Injection Moulding – Procedure and Products

December 17, 2009 – 20:16

In 1868, John Wesley Hyatt developed the first plastic injection mold, and the plastic injection moulding process. He used the plunger method to successfully inject hot, liquid celluloid, often called the first thermoplastic, into a split-die mold. This process was little changed until James Hendry built the first plastic injection mold in 1946. Today, nearly all industrial and medical plastic injection moulding processes use the method.

Plastic mould is a very methodological and technical process. Thus it needs experts in this type of manufacturing business for it to meet the safety terms and to be competitive in the market. A very scientific and systematic mechanical study is first made before going into this endeavor. Here I have discussed some known plastic injection moulding process that can help you to understand the various ways it is done for industry specific plastic products.

1. Injection Moulding.

Examples of applications: Medical plastic laryngeal mask components, laboratory products, extraction systems, toys, aircraft undercarriage components, kitchen utensils, bottle caps, and cell phone stands.

In Injection Moulding, melted plastic is forced into a mold cavity. Once cooled, the mold can be removed. This plastic injection moulding process is commonly used in mass-production or prototyping of a product. Typically this process is used to produce plastic mouldings where the relatively high tooling cost can be justified by low unit costs and tolerances which cannot be achieved by other moulding processes.

2. Blow Moulding.

Examples of applications: Automotive, Toys, Recreational, tubes and containers, Medical, Housework Appliances

The process is divided into three steps: injection, blowing and ejection. Blow moulding is like plastic injection moulding except that hot liquid plastic pours out of a barrel vertically in a molten tube. The mold closes on it and forces it outward to conform to the inside shape of the mold. When it is cooled, the hollow part is formed. Equipments needed in setting-up a blow moulding business are relatively higher than injection moulding.

3. Compression Moulding.

Examples of applications: Automotive exterior panels especially for commercial vehicles, Radio & appliance knobs, ash trays & electrical parts.

In this type of plastic moulding, a slug of hard plastic is pressed between two heated mold halves. Compression moulding usually uses vertical presses instead of the horizontal presses used for injection and blow moulding. The parts formed are then air-cooled. Prices of equipments used for compression moulding are moderate.

4. Rotational Moulding.

Examples of applications: All kinds of plastics mostly hollow Plastic Parts.

Hollow molds packed with powdered plastic are secured to pipe-like spokes that extend from a central hub. The molds rotate on separate axes at once. The hub swings the whole mold to a closed furnace room causing the powder to melt and stick to the insides of the tools. As the molds turn slowly, the tools move into a cooling room. Here, sprayed water causes the plastic to harden into a hollow part. In this type of plastic moulding, tooling costs are low and piece prices are high. Cycle time takes about 40-45 minutes.

5. Gas Assist Moulding

Examples of applications: Flat panels for office equipment, Computer enclosures, Furniture, i.e. tabletops, Automotive panels, Domestic appliances - e.g. fridges.

Also called gas injection mould is used to create plastic parts with hollow interiors. Partial shot of plastic is then followed by high-pressure gas to fill the mold cavity with plastic.

6. Structural Foam Moulding.

Examples of applications: Typical products are large trash containers, freeway sand safety containers and in-ground housing for water systems.

Structural foam moulding is a process of plastic injection moulding usually used for parts that require thicker walls than standard injection moulding. Inserting a small amount of nitrogen or chemical blow agent into the plastic material makes the walls thicker. Foaming happens as the melted plastic material enters the mold cavity. A thin plastic skin forms and solidifies in the mold wall. This type of plastic moulding can be used with any thermoplastic that can be injection molded.

7. Thermoforming.

Examples of applications: Clamshells, Trays, Blisters, Displays, Guards, Covers, Totes, Shields, medical plastics

In this plastic moulding process, sheets of pre-extruded rigid plastics are horizontally heated and down into hollow one-piece tools. When the hot plastic solidifies, its shape conforms to that of the mold. Tooling costs are usually low and piece prices vary on the machinery.

Automation boosts injection moulding quality (2)

December 8, 2009 – 20:14

Tags:Plastic Mold Maker Plastic Injection Molding Die Casting

The largest member of the E Series family of robots, designed for injection moulding machines with clamping forces ranging from 13,000 to 55,000kN, will be presented at K 2001.

The E Series thus covers the entire range of injection moulding machine capacities currently available on the market.

The modular robots of the E Series afford the plastics processor a great many advantages which, when added together, mean “more output for less money”: higher speeds and acceleration rates with standard versions, various selectable levels of performance for digital drive systems, extended maintenance intervals and greater ease of servicing (through permanent lubrication of the rack-and-pinion drives, the use of low-maintenance linear guides, the use of plug-in limit switches etc.), digital monitoring of the vacuum system for the suction grippers (with display and control elements), increased number of optional additional modules, and, last but not least, availability at an even lower price than that of the previous series (approx.

10 to 15% depending on the actual equipment fitted).

Robot control systems - intelligent automation The user-beneficial integration of machine and robot control systems has been one of the main objectives of Engel Automatisierungstechnik GmbH ever since it was founded.

Engel’s “intelligent” robotic systems have been constantly developed and improved.

The many improvements achieved in recent years include: the faster synchronization of robot and machine movements - without any additional hardware - through the use of internal bus connections between the respective control systems, new features for easier operation and programming using menu and teach-in modes, extended integrated safety functions.

Since the launching of Engel’s stand-alone robot control system at K 98, the sale of robots for other makes of injection moulding machine has increased considerably.

Like the “integrated version” (joint operation of the machine and robot control systems via the machine’s VDU), the stand-alone control system is equipped with a high-capacity RISC processor and communicates with the digital drive system and the sensors and actuators of the robot via a CAN bus.

From “high speed” to “low price” Depending on the application, the ERC Series robots are capable of minimizing demoulding times to 0.7 seconds and the total cycle time to around 4 seconds.

For standard applications, such speeds are really exceptional, but when it comes to using machines for special, fast-cycling applications (e.g thin-wall packaging containers), even these speeds are too slow.

For such high-speed applications, Engel has developed special ERS Type high-speed robots which have already proved themselves in actual practice many times over.

This high-speed version permits robot movement speeds of up to 8m/s and an acceleration of up to 150m/sec2 - that’s 15 times faster than acceleration due to gravity! However, fast speeds and acceleration rates alone do not suffice to achieve extremely fast cycling times.

Just as important is the optimum co-ordination of the injection moulding machine, the injection mould and the robot.

The process of “tuning” these three system components even involves optimizing the software running times for the individual program sequences.

This facility is a performance feature which distinguishes Engel systems from those of its competitors.

ERS high-speed demoulding robots operate so fast that it is possible to achieve a total cycle time of only 2 sec and demoulding times of less than 0.3 sec (the shortest demoulding time achieved so far is 0.235 sec!).

Not every application calls for a high-end robotic system.

For demoulding injection moulded parts and depositing them on a conveyor belt, the handling devices of the ER-HLi Series represent a low-cost, integrated means of automation, especially in conjunction with Engel tiebarless machines with clamping forces ranging from 200 to 6,000kN.

This compact demoulding robot can be optionally mounted on the moving platen or on the stationary platen.

The parts are deposited on the machine’s own integrated conveyor belt behind the safety guard, whereby the area around the mould remains readily accessible, as the conveyor belt can be pushed aside whenever necessary.

The compact design of the system not only permits short robot movements and hence short cycle times but also minimizes the required floor space for the production machine.

The integration of the robot control into the machine’s control system makes for optimum ease and reliability of operation..

From the robot to the tray server “Never lose the orientation of a part” is one of the fundamental principles of automation technology.

Consequently, many production facilities make use of special transport containers and systems.

Widespread use is made of thermoformed plastic trays, especially for parts such as mobile telephone housings and components.

The injection moulded parts are deposited, temporarily stored and then transported in these trays for further finishing and assembly (e.g fitting of electronic components).

For this special logistics application, Engel has extended its product range to include, among other things, the so-called tray server.

Thanks to this intelligent system module for the destacking, filling and restacking of trays, the injection moulding machine can produce parts for several hours at a stretch completely unattended.

Moreover, the tray server takes up a minimum of floor space and, thanks to its integration into the production machine (both into the actual machine and into its control system), affords optimum ease and reliability of operation.
